Description

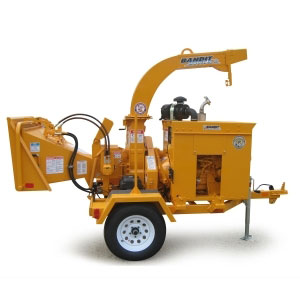

Limb Chipper for Rent

Features

Chipper disc: 3/4” thick x 26” diameter with 2” diameter bearings
Knife Pockets, Knives & Feed rates

Standard: 2-pocket, 1/4” chip, 80 FPM
Knives: 1/2” thick x 4” x 7 1/4
Reversible
1 knife per pocket
Hydraulic Feed System

Hydraulic-powered pivoting top wheel
24 cu/in hydraulic motor
10 5/8” dia. x 12” feed wheel
Chipper Capacity, Throat Opening Size

6” CAPACITY
6” high x 12” wide chipper opening
Infeed Hopper Opening Size

24” high x 42” wide with full folding infeed pan
Hydralic Tank

6 gallon capacity
Cooling baffle
Suction screen
Return filter & sight gauge
Discharge & Height

360º manual swivel & adjustable deflector
3-point hitch = 90” top to groun
Trailerized = 91” top to ground
Blower / Thrower

Reinforced Weldment assemblies (2) paddles with 2-pocket chipper
Drive Shaft & Height

1 3/8” diameter “fatigue proof” steel
3-point hitch = 21”
Trailerized = 21”
Approximate Weight

3-point hitch = 1550 lbs
Trailerized = 1900 lbs
Suggested PTOHP, Range and MaxPTOHP

Range 20HP – 45HP
Specifications:

6-in.-diameter capacity hydraulic-fed disc-style chipper
Limbs and branches feed easy
Single feed wheel crushes limbs, reducing the need to trim
